DUMP SCOW

Witte 4003

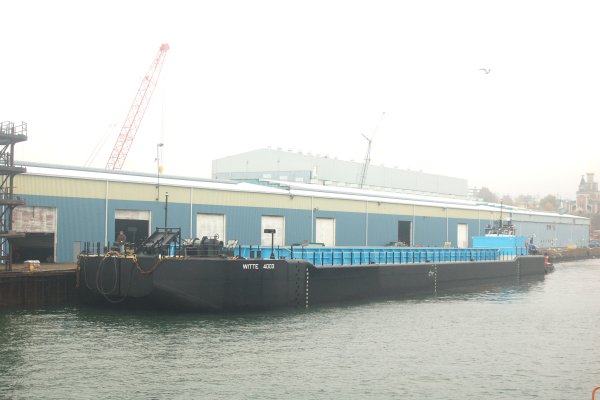

Witte 4003 Dump Scow

OFFICIAL NUMBER
1197244


YEAR BUILT
2006


BARGE
All welded steel construction, having one end raked (forward/towing end) and one end square.


CAPACITY
4,000 yd3


ACCOMMODATIONS
Above deck accommodations & sleeping quarters.


CLASSIFICATION
American Bureau of Shipping
   • Maltese Cross A-1 Barge
   • International Load Line
   • Cargo Gear Certificate
United States Coast Guard
   • Certificate of Inspection


TOWING GEAR
Main Towing Bridle
Sea-Link Towing Plate connected to (2) 60' long legs of 1" diameter wire rope and (9) links of 2 stud-link ORQ chain connected with 52 ton SWL double-nut towing safety shackles.

Emergency Towing Hawser
13" circumference by 600' long with trailing line and buoy with quick release mechanism.

Emergency Anchor
2,000 lb. steel danforth-style anchor with 14 links of 1 Grade 2 stud anchor chain and 941 ft. of 1" diameter galvanized wire rope. Anchor winch is a McElroy Winch Model 633-9.9HB.


ROUTES
Coastwise & Registry


DIMENSIONS
Length:
240' 0"
Breadth:
54' 0"
Depth:
22' 0"
Tonnage (Gross):
   2,395 GRT
Tonnage (Net):
2,395 NRT
