OFFICIAL NUMBER
1091192

YEAR BUILT
2000

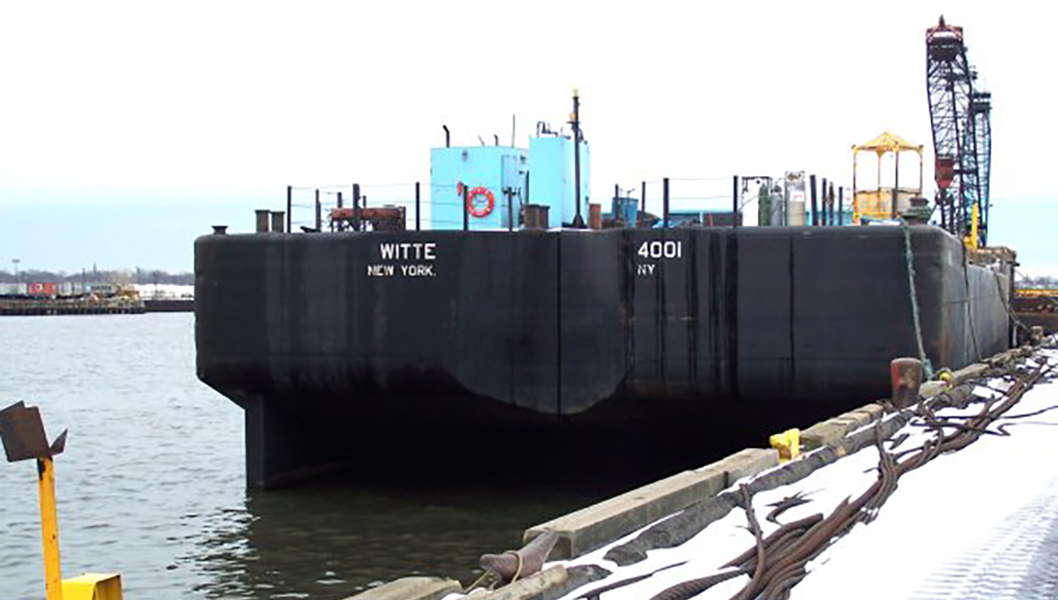

BARGE
All welded steel construction, having one end raked (forward/towing end) and one end square.

LIFT CAPACITY
4,000 yd3

ACCOMMODATIONS
Below deck accommodations & sleeping quarters.

CLASSIFICATION
American Bureau of Shipping
• Maltese Cross A-1 Barge
• International Load Line
• Cargo Gear Certificate
United States Coast Guard
• Certificate of Inspection

   TOWING GEAR
Main Towing Bridle:
Sea-Link Towing Plate connected to (2) 60′ long legs of 1¾” diameter wire rope and (9) links of 2″ stud-link ORQ chain connected with 52 ton SWL double-nut towing safety shackles.

Emergency Towing Hawser:
13″ circumference by 600′ long with trailing line and buoy with quick release mechanism.

Emergency Anchor:
2,000 lb. steel danforth-style anchor with 14 links of 1¼” Grade 2 stud anchor chain and 941 ft. of 1″ diameter galvanized wire rope. Anchor winch is a McElroy Winch Model 633-9.9HB.

ROUTES
Coastwise & Registry

DIMENSIONS
Length:
 240′ 0″
Breadth:
 54′ 0″
Depth:
 22′ 0″
Tonnage (Gross):
 2,395 GRT
Tonnage (Net):
 2,395 NRT
